DEAD SLOW FUZZ

"Dead slow" is slowest speed where ship can still be manouvered. "Dead Slow Fuzz" is the pinnacle of over 20 years of building fuzz pedals. Clear and articulate fuzz that geos from fat and saturated to tight crunch with a turn of the guitar volume pot. It is based on the classic circuit made famous by the Tonebender mk1.5 and the Fuzz Face, added with tweaks and mods learned over the years.


The circuit is built around NOS Sprague TD-101 dual complementary silicon NPN transistor with hfe of approxiamtely 180. Dead Slow is a single knob fuzz with "drive" control that adjusts the signal strength going in to the circuit and a switch that controls the bass response. Switch up and drive at max gives a fat saturated and almost saggin thick fuzz. Switch down gives tight and controlled crunch. Dead Slow responds very well to guitar volume control. Internal controls for volume, bias and fuzz.

Sounds (P90 neck to Green Preamp to interface and cab IR):

Two units have been built so far. Custom builds available for 120euro + shipping.



FUZZ PEDALS by Pekka

This is a page dedicated to fuzz pedals and other effects I have built over the years. All fuzz designs adapted from old designs found online. I hope someone finds this useful or at least entertaining.

Circuits are built on strip boards and most enclosures are custom made. Teflon-lined silver-copper cabling, Switchcraft jacks and high quality foot switches. True-bypass with LED.

I build these for my own entertainment but can also do custom builds. If you want me to build one for you contact me at: pekka [at] vrfy.fi

Fuzz:

Not fuzz:


Fuzz

Fuzz101

Fuzz101 is built around an old TD-101 dual-complimentary NPN silicon transistor. This transistor seems to work very well in a Fuzz Face -style circuit with some adaptations. Input Drive control and switch for more or less bass. Goes from tight crunch sound to fully saturated killer fuzz. And also cleans up really well from guitar volume pot. The box is an experiment in making the smallest possible pedal with still having the connectors on one end. Year 2022.



DoomBender - redux

The DoomBender - redux is an adaptation of the Doombender with Volume and Bass knobs and trimpots for Bias and Attack. Pictured on the right. Year 2020.


DoomBender

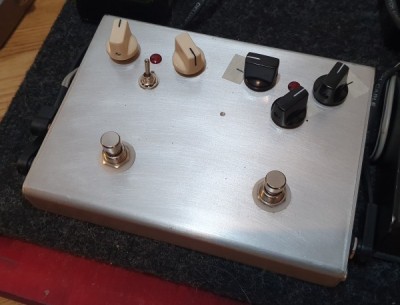

The DoomBender is so far my greatest Tonebender mk2 adaptation. More fuzz than you will ever need with "Doom" control for low frequencies and "Cut" for taming the high end. OC140 Germanium NPN transistors. In the same box together with the OC140 Booster (see below). Year 2021.

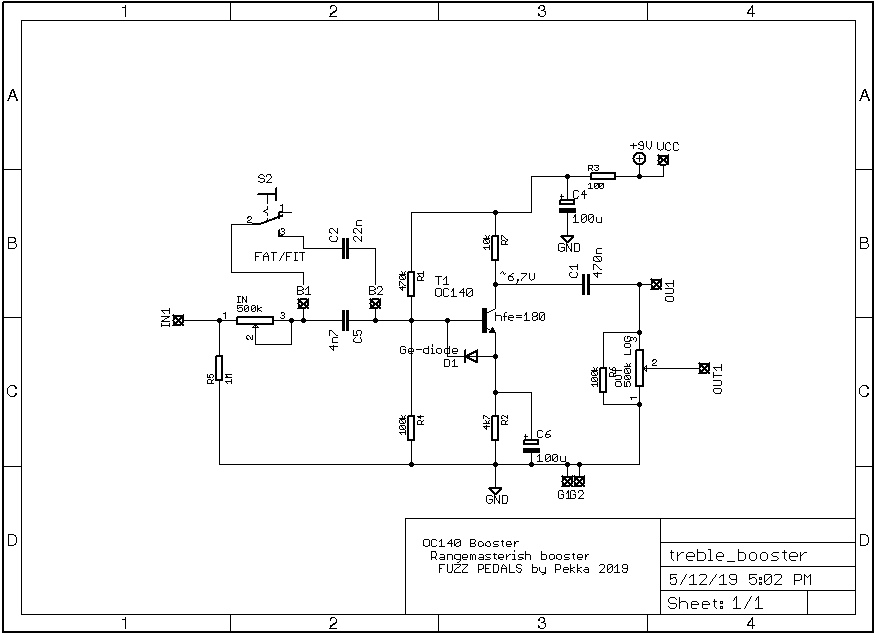

OC140 Booster

Rangemaster-style booster with Fit/Avg -switch and input volume control. Temperature compensation diode at the transistor base. Clean boost or overdriven boost depending on how high you set the input. In the same box together with the DoomBender (see above). Year 2020.

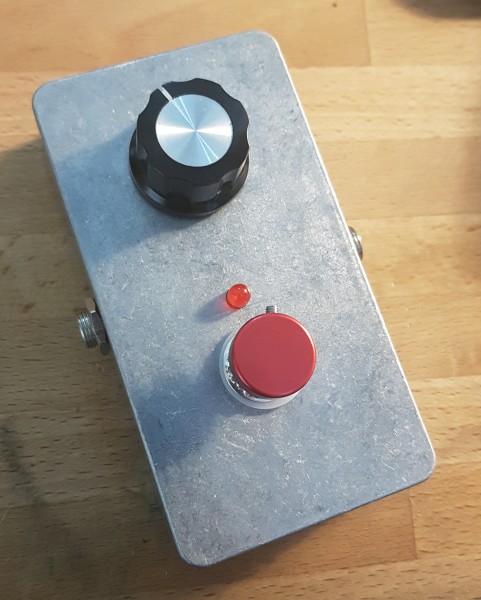

Torso Fuzz rev. 3

Classic Fuzz Face with slightly less gain and thicker sound. No Fuzz control, just a Vol pot. FAT/FIT switch to get woofy or tight low end. This is a really good fuzz! Left side in the pic below. Built in 2020. Sold.


Torso Fuzz is the one on the left.
VERO Layout for Torso Fuzz.

Sound sample: here (recorded with Samsung S10e... Epiphone DOT (SD Jazz neck), KT88 clean amp ja Eminence Delta Pro12A cab)

Torso Fuzz Mk1 Si/Ge Hybrid

This is Torso Fuzz Mark I with BC547 and OC140 transistors and a volume pot at the input. Bright and tight. Year 2019.

BossTone

Adaptation of Jordan Bosstone. More edge and raw sound than germanium fuzz. "Big" sound thanks to LED clipping. Less gain but very punchy sound. Does not clean up from guitar volume as well as classic FF circuit but then again this sounds best at full tilt. Also good FM radio receiver if R11 is set to zero ohms. Year 2019.



VERO Layout for Boss Tone.

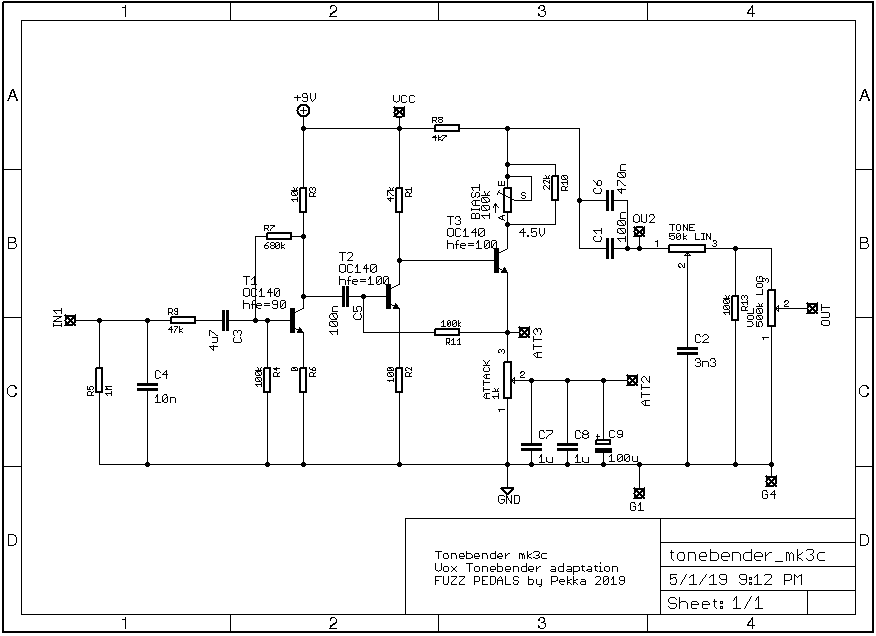

Tonebender Mark II

Adaptation of classic Tonbender mk2. Thick fuzz that cleans well from guitar volume pot. Perfect for stoner rock. Year 2010.

Torso Fuzz Mark I

A germanium FF clone with more than enough trimpots. Used as a test mule. Sounds good. Tricky to adjust. Year 2010.

VERO Layout for Torso mk1.

Treble Booster 2008

Single germanium transistor treble booster. Schematic lost along the way but basicly the classic RangeMaster but with OC140 NPN transistor. Kinda like on this Fuzz Central page. Sold.

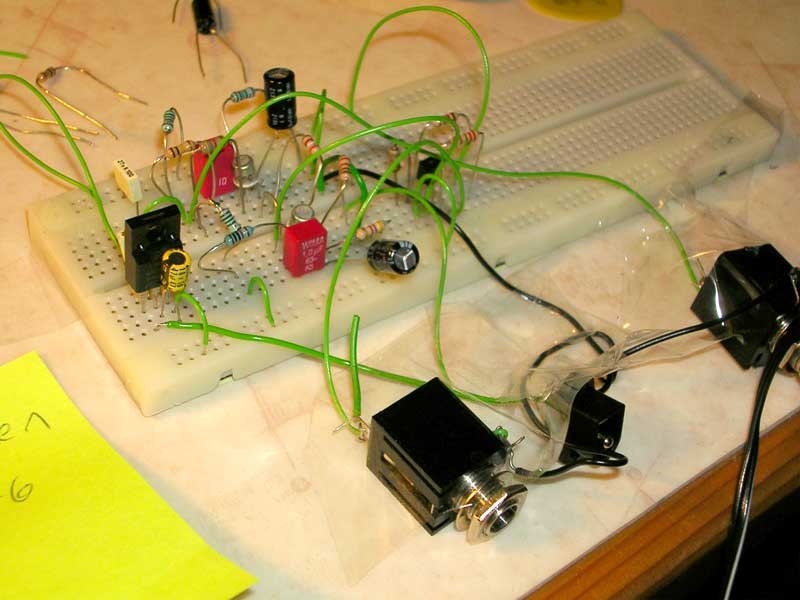

Buzzer (The Self Biasing Fuzz) 2005

Crazy screaming high gain fuzz that also biases with almost any transistor. Bass control to give thick or thin sound at input. Treble control at output. Gain control from guitar. This was built and sold in 2005. Might need to build a new one some day.


The Fuzz Face

My first fuzz pedal. Classic germanium PNP Fuzz Face with AC128 PNP transistor. Built in late 90's and modified to work properly in 2002 when I added the trimpots to bias the circuit.



Not Fuzz

100W Class-D Guitar Amp

This is a guitar amp with ~100W class-D amplifier module (from ebay) paired with a Tube Screamer -style amplifier stage and a Big Muff -style tone control. Power supply is an old laptop PSU with new connector. Incredibly loud and neutral sounding amp that weights nothing when compared to any traditional tube or transistor amp. Built in 2021.



Green Preamp

Matamp style JFET preamp built from Musikding.de kit. Modified for less gain and more headroom on the first amplifier stage. Custom enclosure. Built in 2022.


Transport Dev.

An "analog voiced" PT2399 delay in the style of EQD built from Musikding.de kit to a custom enclosure. Built in 2022.


SF300 SuperFuzz re-house

Behringer SF300 in a roadworthy enclosure. Modded for true bypass with original bypass components remove. Mode switch for modes 1 and 1+2. Sold. Year 2023.




Tonepad Pulsar layout fix

A mistake I noticed in the Tonepad Pulsar layout many years ago.

Updated: 28.03.2023
